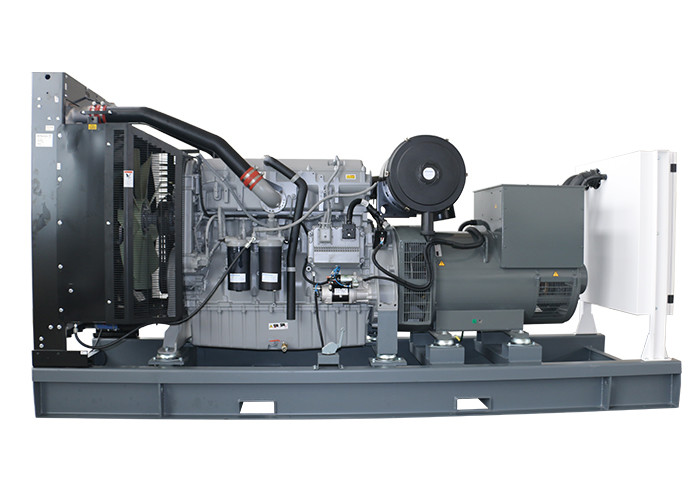

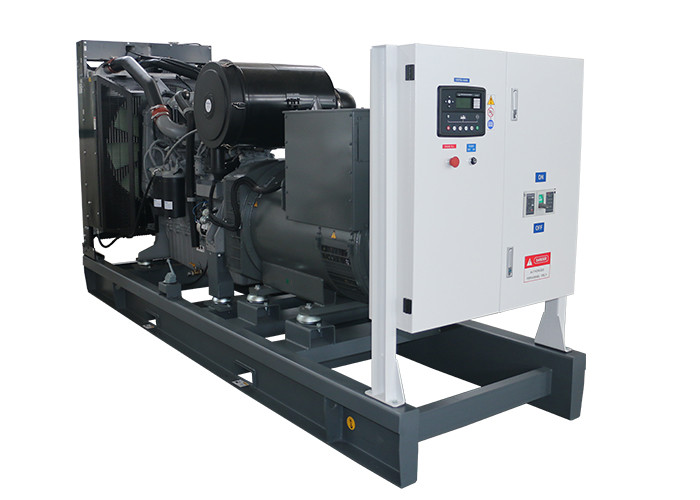

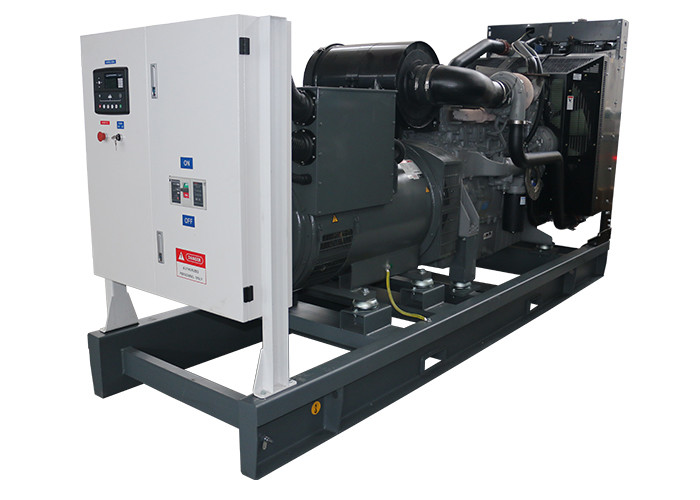

500KVA Perkins diesel generator specification
1. Specification of genset |
|
Gensets model |
PF-P500 |
Prime power |
500KVA 400KW |
Rated frequency(HZ) |
50/60HZ |
Rated Speed |
1500/1800rpm |
Power Factor(COS) |
0.8(lagging) |
2. Specification of diesel engine |
|
Engine brand |
Perkins |
Engine model |
2506A-E15TAG2 |
Number of Cylinders |
6 |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four stroke |
Aspiration |
Turbo Charged |
Bore×Stroke (mm×mm) |
137 x 171 |
Displacement (Liter) |
15.2 |
Compression Ratio |
16:01 |
Speed Governor |
Electronic |
Cooling System |
Forced Water Cooling Cycle |
Lub. oil capacity (L) |
62 |
Fuel Consumption, Stand-by (L/h) |
100 |
Starting Method |
Electrical starting |
3. Specification of alternator |
|
Alternator brand |
Mecc Alte |
Alternator model |
ECO40-3S/4 |
Number of Phase |
3 |
Connecting Type |
3 Phases and 4 Wires |
Number of Bearing |
1 |
Protection Grade |
IP23 |
Altitude |
≤1000m |
Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
Insulation Class |
H |
Heavy duty world class brand industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards
ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
Our normal ATS is bulit inside,but outside ATS box is optional.
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
