Soundproof 500kva Cummins Diesel Generators With MECC Alternator ISO9001 / CE

1 set
MOQ
Soundproof 500kva Cummins Diesel Generators With MECC Alternator ISO9001 / CE
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
Rated power: 500kva / 400kw
Standby power: 550kva / 440kw
Engine: Cummins engine KTA19-G4
Alternator: MECC ALTE
Controller: Smartgen / DeepSea
Certificate: ISO9001/ISO14001/CE
Fuel tank: Keep running 8 hours at 100% loading
লক্ষণীয় করা:

cummins power generator

,

emergency diesel generator

মৌলিক তথ্য
Place of Origin: WUXI City , China
পরিচিতিমুলক নাম: GPRO
সাক্ষ্যদান: ISO/CE
Model Number: PF-CC550
প্রদান
Packaging Details: poly wooden box
Delivery Time: 25 days
Supply Ability: 500 sets
পণ্যের বর্ণনা

Specification on 500KVA Cummins diesel generator:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-CC550
1.2 Prime at 50HZ, 40℃ ambient 400KW 500KVA
1.3 Standby at 50HZ, 40℃ ambient 440KW 550KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2550mm
1.7 Weight 5357kg
1.8 Fuel consumption 100% prime load 107L/h
1.9 Total heat radiated to ambient 88KW
1.10 Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA19-G4
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 448KWm
2.14 Engine Standby Power at 1500rpm 504KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 0℃
2.17 Lubrication oil capacity 50L
2.18 Coolant capacity - radiator and engine (40℃) 91L
2.19 Exhaust temp - full load prime 538℃
2.20 Exhaust gas flow - full load prime 5162m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 13.7 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air intake - engine- full load prime 1912m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Mecc Alte
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 721.7A
3.12 Efficiency 0.938
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 1250kg



Description:


1. Power Range: 500KVA--550KVA

2. Engine: Cummins diesel engine

3. Alternator: Italy Meccalte alternator

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5. ATS is optional

6. Type: Soundproof type

7. Color: Can be customized


Applications:

1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6. Standby power or main power, indoor or outdoor using.


Competitive Advantage:


1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

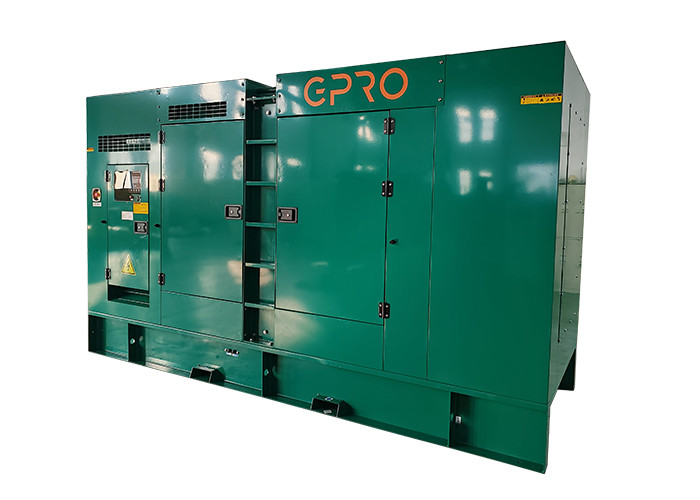

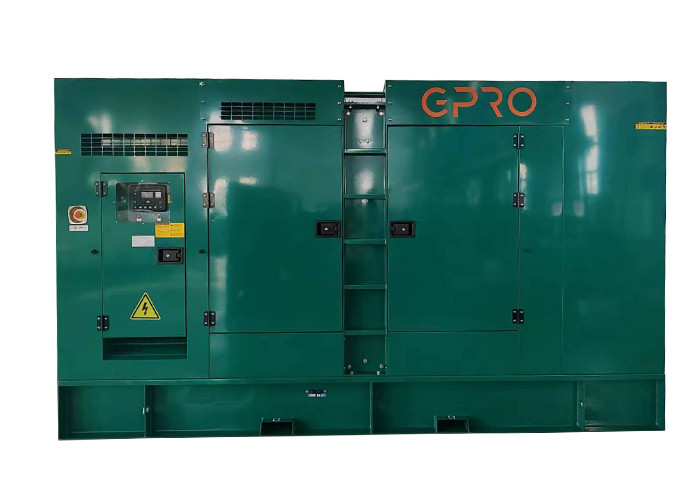

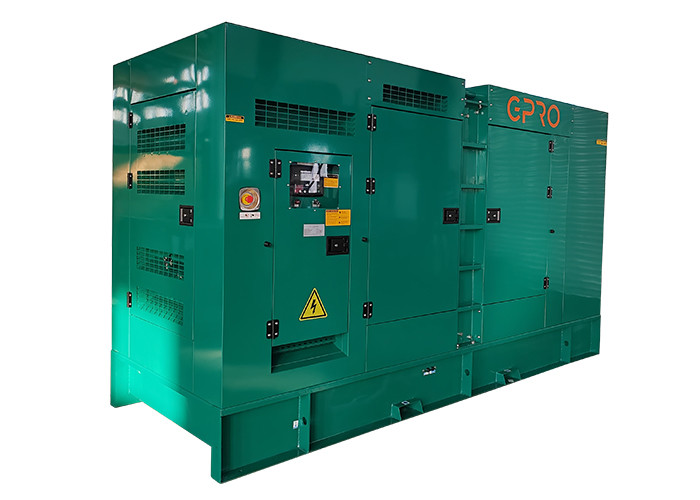

Soundproof type generator photos:



Soundproof 500kva Cummins Diesel Generators With MECC Alternator ISO9001 / CE 0
